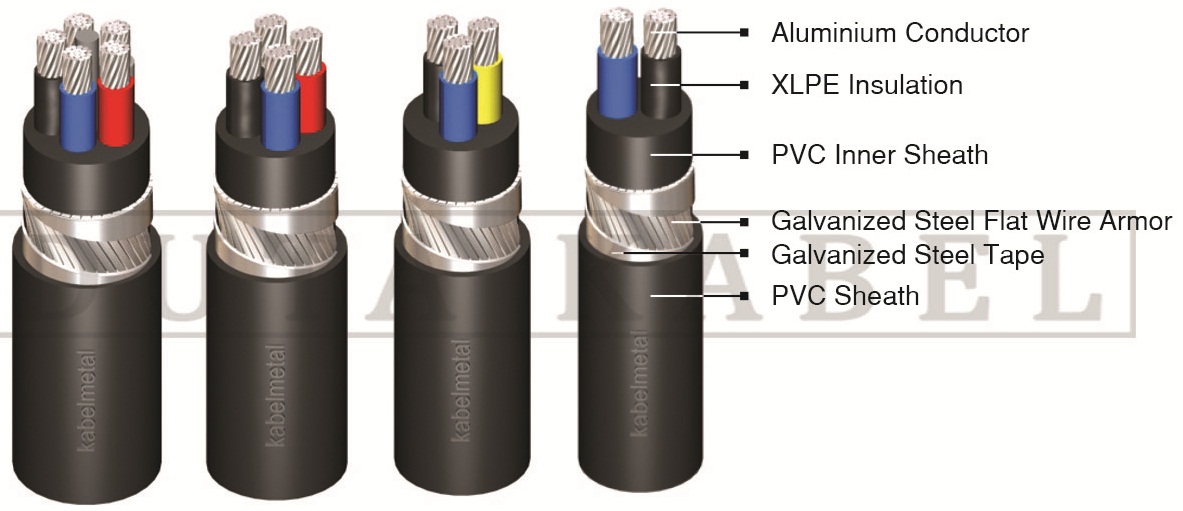

Al / XLPE / SFWA / PVC
(Aluminium Conductor, XLPE Insulated, Galvanized Steel Flat Wire Armor, PVC Sheathed)
Standard Specification: IEC 605021
Size :
NA2XR(AL)Y 1 x (1.5-800) mm² 0.6/1 kV
NA2XFGbY 2 x (1.5-300) mm² 0.6/1 kV
NA2XFGbY 3 x (1.5-300) mm² 0.6/1 kV
NA2XFGbY 4 x (1.5-300) mm² 0.6/1 kV
NA2XFGbY 5 x (1.5-50) mm² 0.6/1 kV
NA2XFGbY Multi Core
Appication :
For installation in the ground, indoors, cable trunking and outdoors if increased mechanical protection is required or where high-pulling stresses may occur during installation or operation.
Special Features on Request :
• Fire Resistance
• Oil Resistance
• UV Resistance
• Flame Retardant Cat. A, B, C
• Flame Retardant Non Category
• Heat Resistance
• Anti Termite
• Anti Rodent
• Low Smoke Zero Halogen
• Nylon Coated
Conductor Shape
1.5 – 10 sqmm supplied in solid (re) or non compacted circular stranded (rm) conductor shape
16 sqmm supplied in non compacted circular stranded (rm) conductor shape
25 – 35 sqmm supplied in compacted circular stranded (cm) conductor shape
50 – 400 sqmm supplied in sector shaped stranded (sm) conductor.
