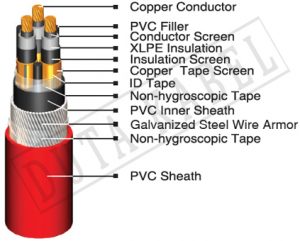

Cu / XLPE / CTS / PVC / SWA / PVC
(Copper Conductor, XLPE Insulated, Copper Tape Screen, Galvanized Steel Wire Armor, PVC Sheathed)
Standard Specification : IEC 60502-2
Size :
N2XSERY 3 x (25-300) mm² 3.6/6 (7.2)kV up to 18/30 (36)kV
Appication :
For installation in the ground, indoors, cable trunking and outdoors if increased mechanical protection is required or where high-pulling stresses may occur during installation or operation.
Special Features on Request :
• Fire Resistance
• Oil Resistance
• UV Resistance
• Flame Retardant Cat. A, B, C
• Flame Retardant Non Category
• Heat Resistance
• Anti Termite
• Anti Rodent
• Low Smoke Zero Halogen
• Nylon Coated
Conductor Shape
25 – 300 sqmm supplied in compacted circular stranded (cm) conductor shape
Standard Packing
25 – 35 sqmm supplied in wooden drum @ 1000 m
50 – 300 sqmm will be suplied in wooden drum on available length
Length Tolerance per drum ± 2%
