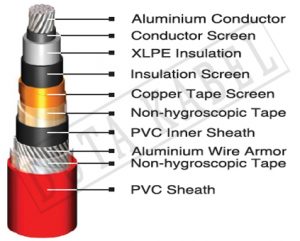

Al / XLPE/ CTS / PVC / AWA / PVC
(Aluminium Conductor, XLPE Insulated, Copper Tape Screen, Aluminium Wire Armor, PVC Sheathed)
Standard Specification : IEC 60502-2
Size :
NA2XSR(AL)Y 1 x (25-630) mm2
Appication :
For installation in the ground, indoors, cable trunking and outdoors if increased mechanical protection is required or where high-pulling stresses may occur during installation or operation.
Special Features on Request :
• Oil Resistance
• UV Resistance
• Flame Retardant Cat. A, B, C
• Flame Retardant Non Category
• Anti Termite
• Anti Rodent
• Low Smoke Zero Halogen
• Nylon Coated
Conductor Shape
25 – 630 sqmm supplied in compacted circular stranded (cm) conductor shape
Standard Packing
25 – 500 sqmm supplied in wooden drum @ 1000 m
630 sqmm will be suplied in wooden drum on available length
Length Tolerance per drum ± 2%
