Al / XLPE / CWS / PVC

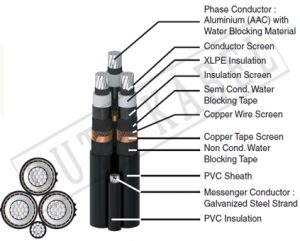

(Aluminium Conductor, XLPE Insulated, Copper Wire Screened, PVC Sheathed, with Galvanized Steel Support Messenger )
Standard Specification : SPLN 43-5-2 : 1995
Size :
NFA2XSY-T 3 x 50/16 + 50 mm2
NFA2XSY-T 3 x 70/16 + 50 mm2
NFA2XSY-T 3 x 95/16 + 50 mm2
NFA2XSY-T 3 x 120/16 + 50 mm2
NFA2XSY-T 3 x 150/25 + 50 mm2
NFA2XSY-T 3 x 185/25 + 50 mm2
NFA2XSY-T 3 x 240/25 + 50 mm2
NFA2XSY-T 3 x 50/16 + 95 mm2
NFA2XSY-T 3 x 70/16 + 95 mm2
NFA2XSY-T 3 x 95/16 + 95 mm2
NFA2XSY-T 3 x 120/16 + 95 mm2
NFA2XSY-T 3 x 150/25 + 95 mm2
NFA2XSY-T 3 x 185/25 + 95 mm2
NFA2XSY-T 3 x 240/25 + 95 mm2
Appication :
For installation outdoors, on ground if no mechanical damage is likely to occur
Special Features on Request :
– Flame Retardant Cat A, B, C
– UV Resistance
– Anti Termite
– Anti Rodent
– Low Smoke Zero Halogen
Conductor Shape
50 – 240 sqmm supplied in compacted circular stranded conductor shape.
Standard Packing
50 – 240 sqmm will be supplied in wooden drum on available length
Length Tolerance per drum ± 2%
