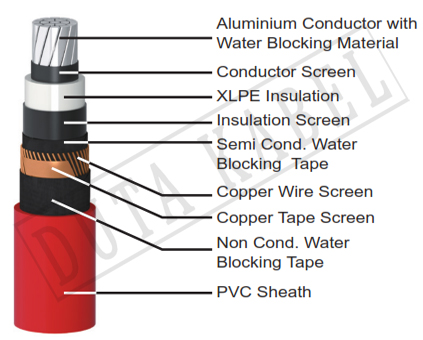

Al / XLPE / CWS / PVC
(Aluminium Conductor, XLPE Insulated, Copper Wire Screen, PVC Sheathed)
Size :
NA2XSY 1 x (35-630) mm² 12/20 (24)kV
Appication :
For installation indoor, in ground direct burried, for power station and switchgear, if there is a risk that low mechanical damage may occur.
Special Features on Request :
• Fire Resistance
• Oil Resistance
• UV Resistance
• Flame Retardant Cat. A, B, C
• Flame Retardant Non Category
• Heat Resistance
• Anti Termite
• Anti Rodent
• Low Smoke Zero Halogen
• Nylon Coated
Conductor Shape
35 – 630 sqmm supplied in compacted circular stranded (cm) conductor shape .
Standard Packing
35 – 400 sqmm supplied in wooden drum @ 1000 m
500 – 630 sqmm will be suplied in wooden drum on available length
Length Tolerance per drum ± 2%
